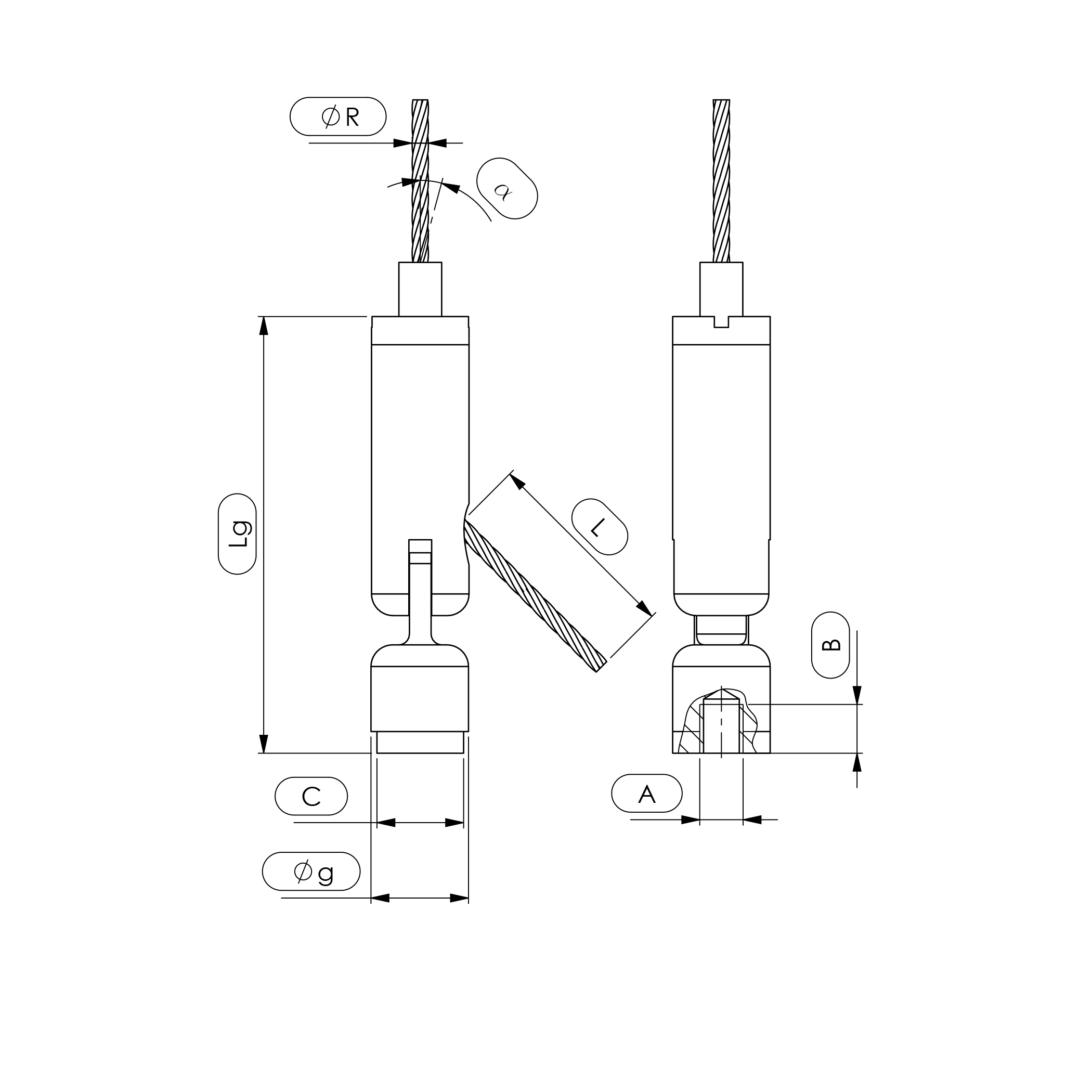

360° joint holder type 15 ZW M4i, nickel plated

A : M4i
B : 4.5mm
C : AF 8
Ø g: 9mm
Lg: 40.3mm
L : min. 25mm
Ø R : 1.0 / 1.2 / 1.5mm
α : max.5°

Additional connection threads:
M5i – Ser. no. 193.007.988
M6i – Ser. no. 193.007.989
