Type 15

For cable diameter 1,0 - 1,5mm
(for the use with different diameters, ask for advice!)
ce ukca
tuev gs
Workingload of the cable holder with galvanized steel cable 2300 N/mm²
cable-Ø 1,0 mm cable-Ø 1,2 mm cable-Ø 1,5 mm
13 kg 17 kg 25 kg
Workingload of the cable holder with Stainless steel cable1570 N/mm²
8 kg 15 kg 20 kg

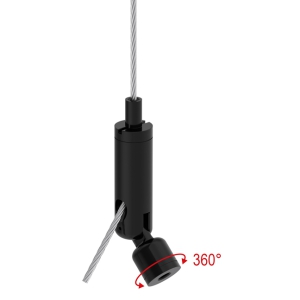

1. 360° joint holder type 15 ZW M4i, black zinc coated

360° joint holder type 15 ZW M4i, black zinc coated

Ser. no. 193.007.984

Diameter: 9 mm
Total length: 39,3 mm
Thread depth: 5 mm
Connecting thread: M4i

Description:
Additional connection thread:
M5i – Ser. no. 193.007.985
M6i – Ser. no. 193.007.986

Animation

more information

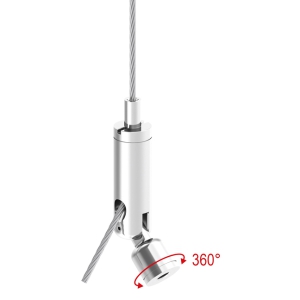

2. 360° joint holder type 15 ZW M4i, nickel plated

360° joint holder type 15 ZW M4i, nickel plated

Ser. no. 193.007.987

Diameter: 9 mm
Total length: 39,3 mm
Thread depth: 5 mm
Connecting thread: M4i

Description:
Additional connection thread:
M5i – Ser. no. 193.007.988
M6i – Ser. no. 193.007.989

Animation

more information

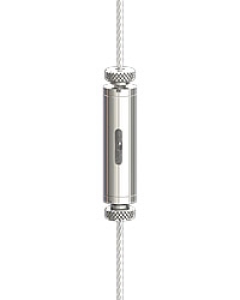

3. Cable connector type 15

Cable connector type 15

Ser. no. 193.002.600

Diameter: 12 mm
Length: 44 mm

Description:
with holder type 15 M10x6A on each end and sight slit for cable diameter 1.0 mm to 1.5 mm

more information
4. Cable holder type 15 M6x10

Cable holder type 15 M6x10

Ser. no. 193.007.265

Diameter: 9 mm
Total length: 27,6 mm
Thread: M6
Thread length: 10mm

more information
5. Cable Holder Type 15 ZW glued with wire hook and safety gate

Cable Holder Type 15 ZW glued with wire hook and safety gate

Ser. no. 193.007.791

Cylinder-ø: 9,0 mm
Cylinder length: 28,5 mm
Total length: 53,0 mm
Max. bolt-ø: 4,0 mm

Description:
max. working load 20 kg

more information
6. Cable Holder Type 15 ZW glued with wire hook big and safety gate

Cable Holder Type 15 ZW glued with wire hook big and safety gate

Ser. no. 193.007.792

Cylinder-ø: 9,0 mm
Cylinder length: 28,5 mm
Total length: 59,0 mm
Max. bolt-ø: 6,0 mm

Description:
max. working load 20 kg

more information
7. Cable Holder Type 15 ZW with stainless steel cylinder head screw and stainless steel sheet metal clip +bolt +SL retainer

Cable Holder Type 15 ZW with stainless steel cylinder head screw and stainless steel sheet metal clip +bolt +SL retainer

Ser. no. 193.005.983

Total length: 56,6 mm
Usable fork height: 15,2 mm
Usable fork width: 13 mm
Bolt diameter: 8 mm

more information
8. Cable Holder Type 15 ZW with stainless steel cylinder head screw and stainless steel sheet metal clip +bolt +SL retainer

Cable Holder Type 15 ZW with stainless steel cylinder head screw and stainless steel sheet metal clip +bolt +SL retainer

Ser. no. 193.005.984

Total length: 56,6 mm
Usable fork height: 15,2 mm
Usable fork width: 7 mm
Bolt diameter: 8 mm

more information
9. Ceiling attachment type 15 ZW cone

Ceiling attachment type 15 ZW cone

Ser. no. 193.000.182

Diameter bottom: 18 mm
Total length: 31 mm

more information

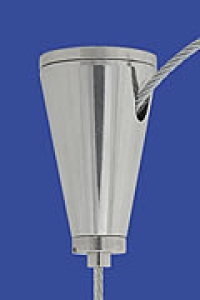

10. Ceiling attachment type 15 ZW cone, with ceiling plate M6i

Ceiling attachment type 15 ZW cone, with ceiling plate M6i

Ser. no. 193.000.197

Diameter bottom: 18 mm
Total length: 33 mm

more information

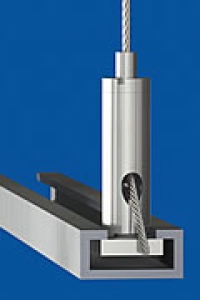

11. Combination of Holder type 15 ZW M4i and set screw M4x14 with groov-nut M4

Combination of Holder type 15 ZW M4i and set screw M4x14 with groov-nut M4

Ser. no. 193.001.859

Diameter: 9 mm
Length: 29 mm
Connecting thread: M4
Grooving stone (LxWxH): 20x11x3

more information

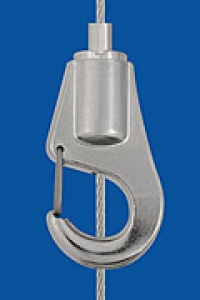

12. Design holder type 15 Hook, with safety gate

Design holder type 15 Hook, with safety gate

Ser. no. 193.001.400

Diameter: 10,5 mm
Total length: 35 mm
Pick mouth: 8 mm

more information

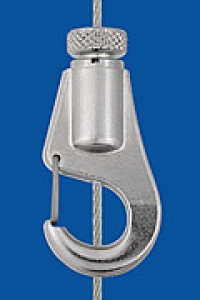

13. Design holder type 15 V Hook, with safety catch

Design holder type 15 V Hook, with safety catch

Ser. no. 193.001.419

Diameter: 10,5 mm
Total length: 35 mm
Pick mouth: 8 mm

more information

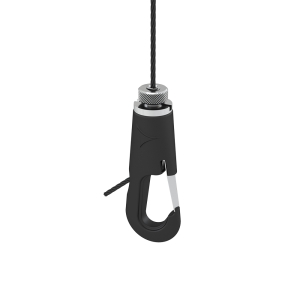

14. Designhook WROP Type 15 V-ZW, with safety gate and locking nut, lateral cable exit, black

Designhook WROP Type 15 V-ZW, with safety gate and locking nut, lateral cable exit, black

Ser. no. 193.900.047

Total hight: 50 mm
Hook opening: 12 mm
Bolt diameter: 6 mm

more information
15. Designhook WROP Type 15 V-ZW, with safety gate and locking nut, lateral cable exit, silver

Designhook WROP Type 15 V-ZW, with safety gate and locking nut, lateral cable exit, silver

Ser. no. 193.900.046
more information

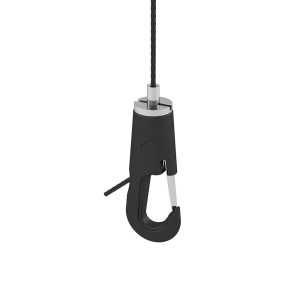

16. Designhook WROP Type 15 ZW with safety gate, lateral cable exit, black

Designhook WROP Type 15 ZW with safety gate, lateral cable exit, black

Ser. no. 193.900.048

Total hight: 50 mm
Hook opening: 12 mm
Bolt diameter: 6 mm

more information

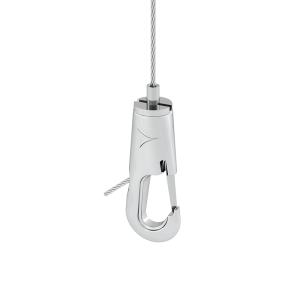

17. Designhook WROP Type 15 ZW with safety gate, lateral cable exit, silver

Designhook WROP Type 15 ZW with safety gate, lateral cable exit, silver

Ser. no. 193.900.044

Total hight: 50 mm
Hook opening: 12 mm
Bolt diameter: 6 mm

more information

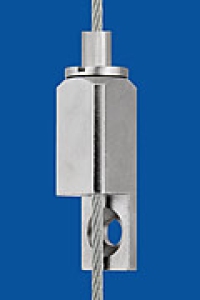

18. Holder type 15 Bo3

Holder type 15 Bo3

Ser. no. 193.000.147

Width: 9mm
Depth: 9mm
Total length: 25mm
Bore diameter: 3,2mm

more information

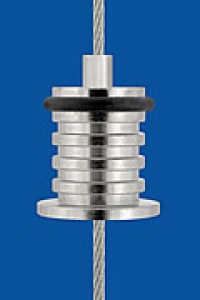

19. Holder type 15 Bottom 5N 10x1,5, with o-ring (for shelves)

Holder type 15 Bottom 5N 10x1,5, with o-ring (for shelves)

Ser. no. 193.000.144

Diameter: 12mm
Hub diameter: 16mm
Thread length: 16,5 mm

more information

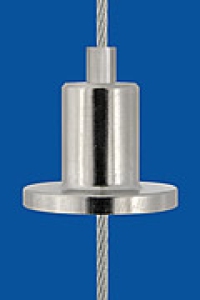

20. Holder type 15 Bottom B20

Holder type 15 Bottom B20

Ser. no. 193.000.146

Diameter: 10mm
Hub diameter: 20mm
Total length: 16mm

more information

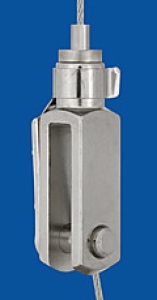

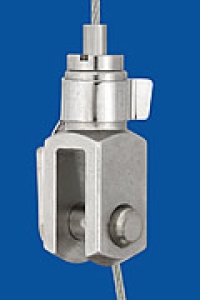

21. Holder type 15 Fork 6x12

Holder type 15 Fork 6x12

Ser. no. 193.000.167

Total length: 34 mm
Usable fork height: 12 mm
Fork width: 6 mm

more information
22. Holder type 15 Fork 6x24

Holder type 15 Fork 6x24

Ser. no. 193.000.168

Total length: 46 mm
Usable fork height: 24 mm
Fork width: 6 mm

more information

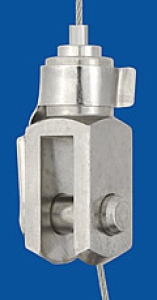

23. Holder type 15 Fork 8x16

Holder type 15 Fork 8x16

Ser. no. 193.000.169

Total length: 45 mm
Usable fork height: 16 mm
Fork width: 8 mm

more information

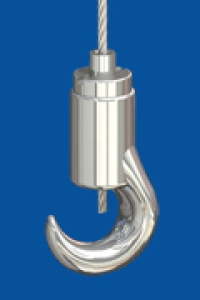

24. Holder type 15 Hook

Holder type 15 Hook

Ser. no. 193.000.163

Diameter: 10mm
Total length: 30mm
Pick mouth: 5,5mm
Pick - bore diameter: 10mm
Pick - external diameter: 16mm

more information
25. Holder type 15 K18

Holder type 15 K18

Ser. no. 193.000.165

Diameter: 18mm

more information

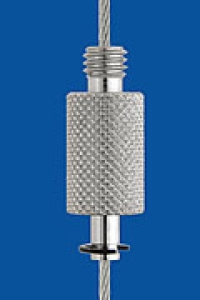

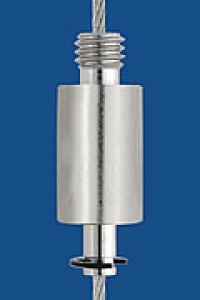

26. Holder type 15 K6

Holder type 15 K6

Ser. no. 193.000.161

Diameter: 10mm
Total length: 22mm
Thread length: 6mm
Connecting thread: M6

Description:
Pull to unlock

more information
27. Holder type 15 K6

Holder type 15 K6

Ser. no. 193.001.739

Diameter: 10 mm
Total length: 22 mm
Thread length: 6 mm
Connecting thread: M6

Description:
Pull to unlock!

more information

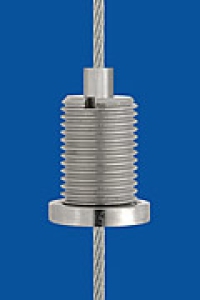

28. Holder type 15 M10x14 B

Holder type 15 M10x14 B

Ser. no. 193.000.153

Hub diameter: 13mm
Total length: 16mm
Thread: M10x1
Thread length: 13,5mm

more information

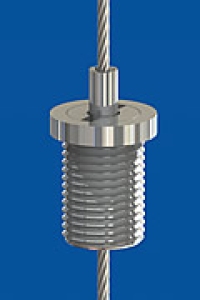

29. Holder type 15 M10x14A

Holder type 15 M10x14A

Ser. no. 193.000.156

Hub diameter: 13mm
Total length: 16mm
Thread: M10x1
Thread length: 13,5mm

more information
30. Holder type 15 M10x16

Holder type 15 M10x16

Ser. no. 193.000.150

Total length: 16mm
Thread: M10x1
Thread length: 16mm

more information

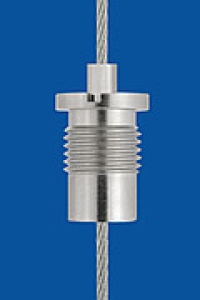

31. Holder type 15 M10x6A

Holder type 15 M10x6A

Ser. no. 193.000.155

Hub diameter: 12mm
Height: 2mm
Total length: 16mm
Thread length: 6mm
Connecting thread: M10x1

more information

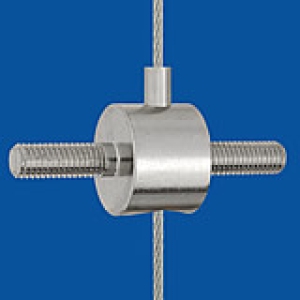

32. Holder type 15 M5x15 2Q

Holder type 15 M5x15 2Q

Ser. no. 193.000.171

Diameter: 16mm
Total length: 15mm
Thread: M5

more information

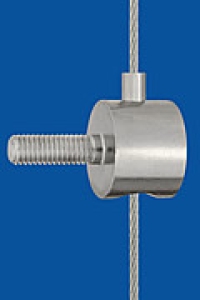

33. Holder type 15 M5x15 Q

Holder type 15 M5x15 Q

Ser. no. 193.000.174

Diameter: 16 mm
Total length: 15 mm
Thread: M5

more information

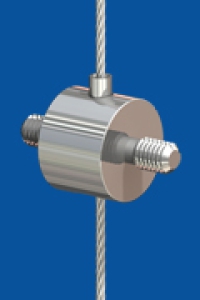

34. Holder type 15 M5x8 2Q

Holder type 15 M5x8 2Q

Ser. no. 193.002.169

Diameter: 16 mm
Thread length: 8 mm
Connecting thread: 2 x M5

more information

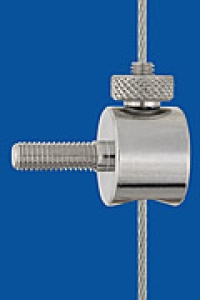

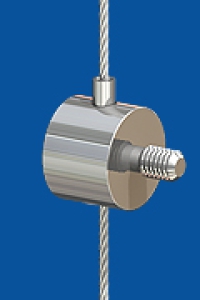

35. Holder type 15 M5x8Q

Holder type 15 M5x8Q

Ser. no. 193.000.337

Diameter: 16 mm
Thread length: 15 mm
Connecting thread: M5

more information
36. Holder type 15 M5x8Q

Holder type 15 M5x8Q

Ser. no. 193.000.355

Diameter: 16 mm
Thread length: 8 mm
Connecting thread: M5

more information

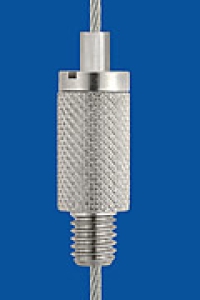

37. Holder type 15 M6x7, knurled

Holder type 15 M6x7, knurled

Ser. no. 193.000.212

Diameter: 9 mm
Total length: 24 mm
Thread: M6
Thread length: 7 mm

more information

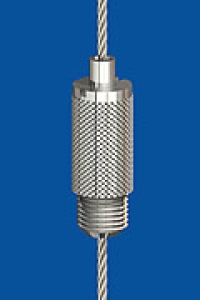

38. Holder type 15 M8x7, knurled

Holder type 15 M8x7, knurled

Ser. no. 193.000.211

Diameter: 9 mm
Total length: 24 mm
Thread: M8
Thread length: 7 mm

more information

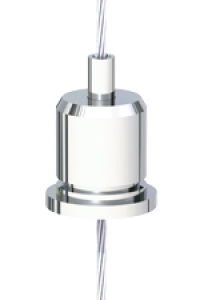

39. Holder type 15 N 11x1,2

Holder type 15 N 11x1,2

Ser. no. 193.006.940

Diameter: 13 mm
Total length: 16 mm

more information

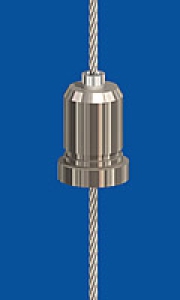

40. Holder type 15 N9x1,2

Holder type 15 N9x1,2

Ser. no. 193.000.162

Diameter: 10 mm
Length: 16 mm

more information

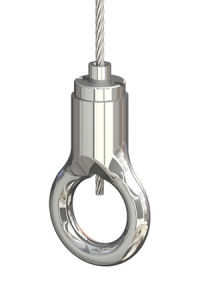

41. Holder type 15 Ring

Holder type 15 Ring

Ser. no. 193.000.159

Diameter: 10mm
External diameter: 18mm
Total length: 31mm
Bore diameter: 10mm

more information

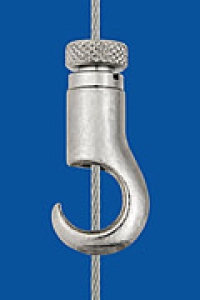

42. Holder type 15 V Hook

Holder type 15 V Hook

Ser. no. 193.000.624

Diameter: 10 mm
Total length: 30 mm
Pick mouth: 5,5 mm
Pick - bore diameter: 10 mm
Pick - external diameter: 16 mm

more information
43. Holder type 15 V M10x16

Holder type 15 V M10x16

Ser. no. 193.000.843

Total length: 16 mm
Thread: M10x1
Thread length: 16 mm

more information
44. Holder type 15 V M10x6A

Holder type 15 V M10x6A

Ser. no. 193.000.216

Diameter: 9 mm
Hub diameter: 12 mm
Total length: 16 mm
Thread: M10x1
Thread length: 6 mm

more information

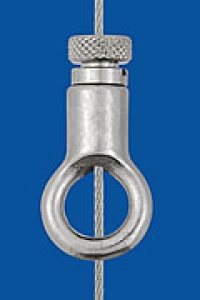

45. Holder type 15 V ring, with locking nut

Holder type 15 V ring, with locking nut

Ser. no. 193.000.625

Diameter: 10 mm
External diameter: 18 mm
Total length: 31 mm
Bore diameter: 10 mm

more information

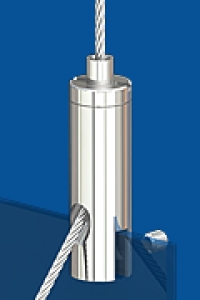

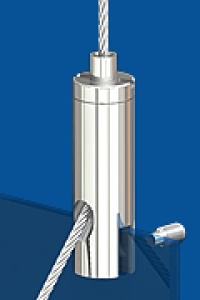

46. Holder type 15 with slit 2,5mm, with set screw M3x3

Holder type 15 with slit 2,5mm, with set screw M3x3

Ser. no. 193.002.429

Diameter: 9 mm
Groove: 2,5 mm x 7 mm

more information
47. Holder type 15 with slit 2,5mm, with set screw M3x6

Holder type 15 with slit 2,5mm, with set screw M3x6

Ser. no. 193.000.518

Diameter: 9 mm
Groove: 2,5 mm x 7 mm

more information

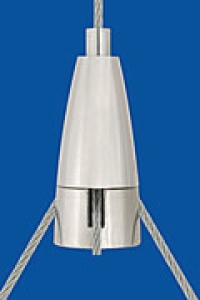

48. Holder type 15 ZW Ellipse, M5x5, Q 2,2

Holder type 15 ZW Ellipse, M5x5, Q 2,2

Ser. no. 193.000.859

Diameter: 14 mm
Total length: 30 mm
Thread depth: 5 mm
Connecting thread: M5
Cross hole: 2,2 mm

more information

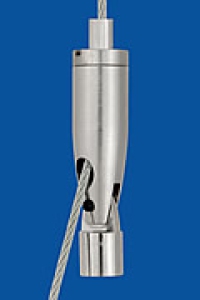

49. Holder type 15 ZW hinge, M4i

Holder type 15 ZW hinge, M4i

Ser. no. 193.000.194

Diameter: 9mm
Total length: 36mm
Thread depth: 4mm
Connecting thread: M4

Description:
Additional threads:
M5 - Ser.no.:193.000.339

achtung Align the joint in the direction of pull!

more information

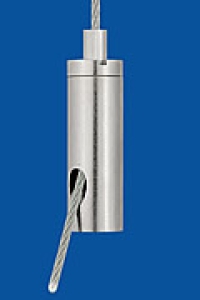

50. Holder type 15 ZW M4i

Holder type 15 ZW M4i

Ser. no. 193.000.179

Diameter: 9 mm
Thread length: 29 mm
Thread depth: 5 mm
Connecting thread: M4

Description:
Additional Thread:
M3-Art.Nr.: 193.000.183
M5 Art.Nr.: 193.000.180
M6-Art.Nr.: 193.000.122

more information

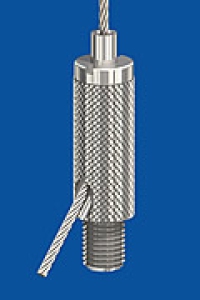

51. Holder type 15 ZW M6, knurled

Holder type 15 ZW M6, knurled

Ser. no. 193.002.737

Diameter: 9 mm
Length: 30 mm

more information

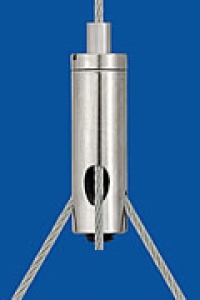

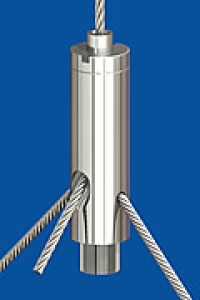

52. Holder type 15 ZW M6ix6, with slit 2.6mm and set screw for Y – Suspensions

Holder type 15 ZW M6ix6, with slit 2.6mm and set screw for Y – Suspensions

Ser. no. 193.000.188

Diameter: 9 mm
Total length: 29 mm
Thread depth: 6 mm
Connecting thread: M6i
Groove: 2,6 mm

more information
53. Holder type 15 ZW NK

Holder type 15 ZW NK

Ser. no. 193.000.172

Diameter: 10 mm
Total length: 30 mm

more information
54. Holder type 15 ZW, nut 3,0, ø12mm

Holder type 15 ZW, nut 3,0, ø12mm

Ser. no. 193.000.223

Diameter: 12 mm
Total length: 30 mm

more information
55. Holder type 15, Top K20

Holder type 15, Top K20

Ser. no. 193.001.720

Diameter: 10 mm
Hub diameter: 20 mm
Length: 22 mm

Description:
Pull to unlock!

more information
56. Loop holder type 15 K6N, black

Loop holder type 15 K6N, black

Ser. no. 193.011.010

Width: 17 mm
High: 22 mm
Depth: 10 mm

Description:
With pull and press mechanism

more information
57. Loopr type 15 K6N, nickel plated

Loopr type 15 K6N, nickel plated

Ser. no. 193.011.009

Height: 22 mm
Width: 17 mm
Depth: 10 mm

Description:
With pull and press mechanism

more information
58. Y-holder type 15 ZW M5ix5, with slit 2,0

Y-holder type 15 ZW M5ix5, with slit 2,0

Ser. no. 193.000.184

Diameter: 9 mm
Total length: 29 mm
Thread depth: 5 mm
Connecting thread: M5
Groove: 2,0 mm

more information
59. Y-Holder type 15 ZW M5ix6 Q 2,0mm with set screw M5x10,2x8,2

Y-Holder type 15 ZW M5ix6 Q 2,0mm with set screw M5x10,2x8,2

Ser. no. 193.000.863

Diameter: 9 mm
Total length: 30 mm
Connecting thread: M5

more information
60. Y-Holder type 15 ZW M5ix6 Q 2,0mm with set screw M5x12x7

Y-Holder type 15 ZW M5ix6 Q 2,0mm with set screw M5x12x7

Ser. no. 193.000.958

Diameter: 9 mm
Total length: 30 mm
Connecting thread: M5

more information
61. Y-holder type 15 ZW M5ix6, Q 2,0

Y-holder type 15 ZW M5ix6, Q 2,0

Ser. no. 193.000.175

Diameter: 9 mm
Total length: 29 mm
Thread depth: 5 mm
Connecting thread: M5

more information
