Type 12

For cable diameter 0,63 mm, 0,81 mm, 1,0 - 1,2 mm
(for the use with different diameters, ask for advice!)
tuev gs

1.

Holder type 12  Balll ø 12mm

Holder type 12 Balll ø 12mm

Ser. no. 193.000.017
  • Diameter: 12mm
  • Lenght: 19mm

2.

Holder type 12  M8x10

Holder type 12 M8x10

Ser. no. 193.000.098
  • Diameter: 8mm
  • Lenght: 10mm
  • Connecting thread: M8

3.

Holder type 12  M4x7 m.R.

Holder type 12 M4x7 m.R.

Ser. no. 193.000.133
  • Diameter: 8mm
  • Lenght: 21mm
  • Thread lenght: 7mm
  • Connecting thread: M4

4.

Holder type 12  M4x7 o.R.

Holder type 12 M4x7 o.R.

Ser. no. 193.000.134
  • Diameter: 8mm
  • Lenght: 21mm
  • Thread lenght: 7mm
  • Connecting thread: M4

5.

Holder type 12 N7x1,0

Holder type 12 N7x1,0

Ser. no. 193.000.135
  • Diameter: 8mm
  • Total lenght: 10mm

6.

Holder type 12 ZW for Y-coupler M4ix4, slit 1,6mm and  set screw

Holder type 12 ZW for Y-coupler M4ix4, slit 1,6mm and set screw

Ser. no. 193.000.136
  • Diameter: 9mm
  • Lenght: 24mm
  • Thread depth: 4mm
  • Connecting thread: M4

7.

Holder type 12 V  M8x1 A9, w. nut

Holder type 12 V M8x1 A9, w. nut

Ser. no. 193.000.137
  • Hub diameter: 9mm
  • Lenght: 10mm
  • Thread lenght: 8mm
  • Connecting thread: M8x1

8.

Holder type 12  M8x1 A9

Holder type 12 M8x1 A9

Ser. no. 193.000.139
  • Hub diameter: 9mm
  • Lenght: 10mm
  • Thread lenght: 8mm
  • Connecting thread: M8x1
  • Example

9.

Holder type 12  M8x1, A9 with coupler  fork 5x10

Holder type 12 M8x1, A9 with coupler fork 5x10

Ser. no. 193.000.141
  • Usable lenght: 16mm
  • Lenght: 28mm
  • Usable fork width: 10mm x 10mm
  • Fork width: 5mm
  • Example

10.

Holder type 12  M8x1, A9 with coupler ZW M4ix4

Holder type 12 M8x1, A9 with coupler ZW M4ix4

Ser. no. 193.000.142
  • Diameter: 9mm
  • Lenght: 24mm
  • Thread depth: 4mm
  • Connecting thread: M4

11.

Holder type 12 V M8x1 A9, with coupler ZW NK

Holder type 12 V M8x1 A9, with coupler ZW NK

Ser. no. 193.000.143
  • Diameter: 9mm
  • Lenght: 26mm
  • Slot width: 3,5mm
  • Slot height: 2,5mm

12.

Holder type 12 (V) M8x1 A9

Holder type 12 (V) M8x1 A9

Ser. no. 193.000.363
  • Hub diameter: 9mm
  • Lenght: 10mm
  • Thread lenght: 8mm
  • Connecting thread: M8x1
  • Pipe thread: M3

13.

Holder type 12 ZW NK

Holder type 12 ZW NK

Ser. no. 193.000.759
  • Diameter: 8mm
  • Total lenght: 23mm

14.

Y-Holder type 12 ZW M4ix4, cross bore ø 1,6mm,  withknurled srew

Y-Holder type 12 ZW M4ix4, cross bore ø 1,6mm, withknurled srew

Ser. no. 193.000.763
  • Diameter: 9mm
  • Lenght: 24mm
  • Thread depth: 4mm
  • Connecting thread: M4
  • Cross hole: 1,6mm

15.

Holder type 12 V M8x10

Holder type 12 V M8x10

Ser. no. 193.000.766
  • Diameter: 8mm
  • Lenght: 10mm
  • Connecting thread: M8

16.

Y-Holder type 12  ZW M4ix4, with slit 1,6mm,  with knurled srew

Y-Holder type 12 ZW M4ix4, with slit 1,6mm, with knurled srew

Ser. no. 193.000.777
  • Hub diameter: 9mm
  • Lenght: 24mm
  • Thread depth: 4mm
  • Connecting thread: M4
  • Groove width: 1,6mm

17.

Holder type 12 ZW  hinged, M4ix4

Holder type 12 ZW hinged, M4ix4

Ser. no. 193.000.798
  • Diameter: 9mm
  • Lenght: 32mm

18.

Y-Holder type 12  M8x1, with coupler ZW M4ix4, slit 1,6mm, with screw

Y-Holder type 12 M8x1, with coupler ZW M4ix4, slit 1,6mm, with screw

Ser. no. 193.000.894
  • Diameter: 9mm
  • Lenght: 24mm
  • Thread depth: 4mm
  • Connecting thread: M4
  • Cross hole: 1,6mm

19.

Isolation holder type 12 on low-voltage power feed nickel plated

Isolation holder type 12 on low-voltage power feed nickel plated

Ser. no. 193.002.040
  • Diameter: 9 mm
  • Lenght: 10 mm
  • for cable diameter 1,0 - 4,2 mm

20.

Holder type 12  M10 A11

Holder type 12 M10 A11

Ser. no. 193.002.150
  • Hub diameter: 11mm
  • Lenght: 10mm
  • Connecting thread: M10

21.

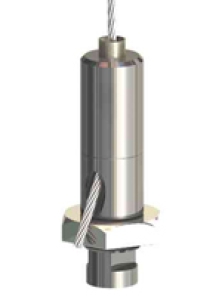

Holder type 12  ZW - NK; M4;  with flat hexagon nut M8x1; SW 12x3 mm

Holder type 12 ZW - NK; M4; with flat hexagon nut M8x1; SW 12x3 mm

Ser. no. 193.006.239
  • Diameter: 8 mm
  • Lenght: 29,7 mm

22.

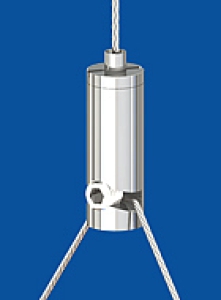

Y-Holder type 12 ZW RS

Y-Holder type 12 ZW RS

Ser. no. 193.006.331
  • Diameter: 9mm
  • Lenght: 25mm
  • German sample: 20 2007 008 350.5
